*all measurements are in inches
These are the amended orthographic drawings of my project. Please note the change in dimensions of the support beam and control housing box. I also showed that the box is hollow. I also added industrial strength Velcro to the underside of the support beams. My partner, ES, and I came up with this solution after our instructor, DA, suggested that we make my piece removable from the vessel. The edges of the vessel will have industrial strength Velcro so that the two separate pieces will attach and unattach easily.
 |
| Fig. 1: Top View |
 |
| Fig. 2: Bottom view |
 |

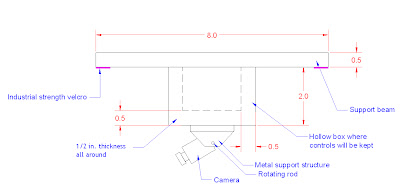

| Fig. 3: Front View |
 |
| Fig. 4: Side view |
All drawings done by MM using AutoCAD.
